Alternative Solution for the Popular Connectors (December 10, 2023) | ||||||
| NO. | SPEC. | JKUN P/N | Alternative brands | Alternative P/N | Description | |

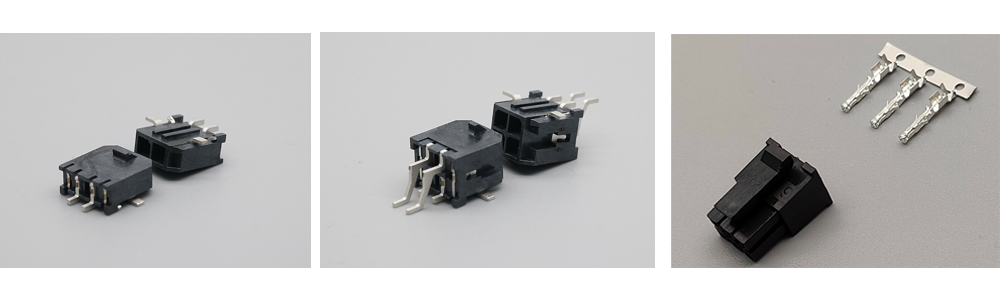

| NO.1 | MX3.0 | A3001AWR-xx | MOLEX | 43650(xx)12 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 2 to 12 Circuits | |
| A3001AWR-2xx | MOLEX | 43045(xx)09 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 to 24 Circuits | |||
| A3001AWV-xx | MOLEX | 43650(xx)24 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 to 12 Circuits | |||
| A3001AWV-2xx | MOLEX | 43045(xx)19 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 to 24 Circuits | |||
| A3001Y-xx | MOLEX | 43645(xx)00 | Micro-Fit 3.0 Receptacle Housing, Single Row, 2 to 12 Circuits | |||
| A3001Y-2xx | MOLEX | 43025(xx)08 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 2 to 24 Circuits | |||
| A3001A-2xx | MOLEX | 43045(xx)12 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 to 24 Circuits, with PCB Polarizing Peg | |||
| A3001AWB-2xx | MOLEX | 43045(xx)02 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 to 24 Circuits,, with Snap-in Plastic Peg PCB Lock | |||
| A3001T | MOLEX | 43030-00xx | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 to 24 Circuits,, with Snap-in Plastic Peg PCB Lock | |||
| ||||||
| NO. | SPEC. | JKUN P/N | Alternative brands | Alternative P/N | Description | |

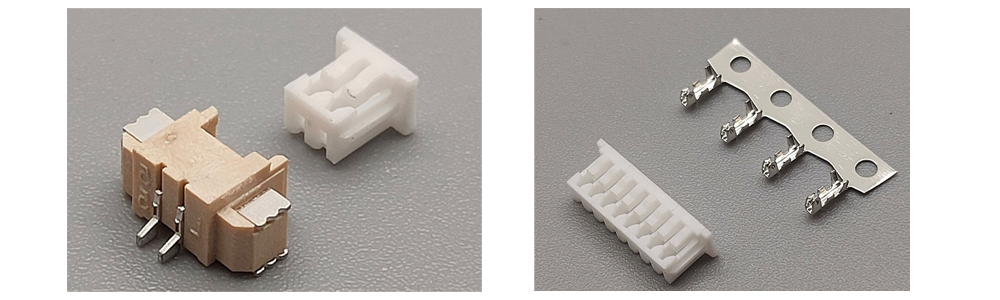

| NO.2 | MX1.25 PicoBlade | A1251AWR-xx | MOLEX | 53261(xx)71 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Surface Mount, Friction Lock, 2 to 16 Circuits | |
| A1251AWV-xx | MOLEX | 53398(xx)71 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Friction Lock, 2 to 16 Circuits | |||
| A1251Y-xx | MOLEX | 51021(xx)00 | 1.25mm Pitch, PicoBlade Receptacle Crimp Housing, Single Row, Friction Lock, 2 to 16 Circuits | |||
| A1251T | MOLEX | 50058-8000/8100 | 1.25mm Pitch, PicoBlade Female Crimp Terminal, Tin (Sn) Plating, 28-32 AWG | |||
| A1251A-xx | MOLEX | 53047(xx)10 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Friction Lock, 2 to 16 Circuits, Tray, 2.30mm PC Tail Length | |||
| A1251AW-xx | MOLEX | 53048(xx)10 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Through Hole, Friction Lock, 2 to 16 Circuits, Tray, 2.30mm PC Tail Length | |||
| ||||||
| NO. | SPEC. | JKUN P/N | Alternative brands | Alternative P/N | Description | |

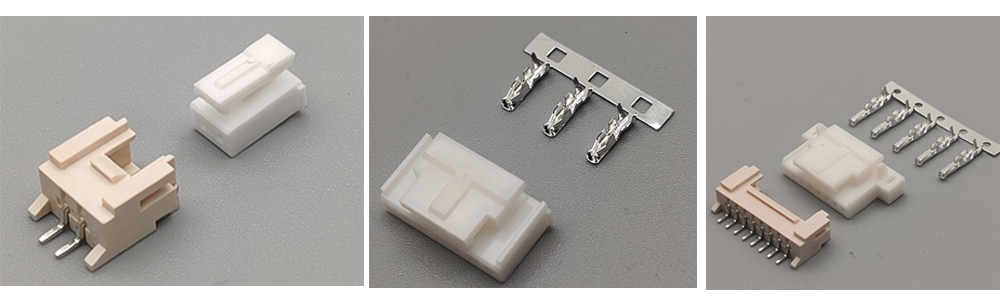

| NO.3 | HY2.0 (PHB2.0) | A2002AWR-xx | YEONHO | 20037WR-Hxx | 2.0mm Pitch, wire to board, Single Row, Right-Angle, Surface Mount, Friction Lock, 2 to 16 Circuits | |
| A2002AWV-xx | YEONHO | / | 2.0mm Pitch, wire to board, Single Row, Vertical, Surface Mount, Friction Lock, 2 to 16 Circuits | |||
| A2002AW-xx | YEONHO | SMAW200-xx | 2.0mm Pitch,wire to board, Single Row, Right-Angle, Through Hole, Friction Lock, 2 to 16 Circuits | |||
| A2002Y-xx | YEONHO | SMH200-xx | 2.0mm Pitch, PicoBlade Receptacle Crimp Housing, Single Row, Friction Lock, 2 to 16 Circuits | |||
| A2002T | YEONHO | YST200 | 2.0mm Pitch,wire to board, Female Crimp Terminal, Tin (Sn) Plating, 22-32 AWG | |||
| QA2022Y/PS-xx(ISL) | / | / | 2.0mm Pitch, PicoBlade Receptacle Crimp Housing, Single Row, TPA/ISL connector, 2 to 16 Circuits | |||
| QA2022T(ISL) | / | / | 2.0mm Pitch, PicoBlade Female Crimp Terminal, Tin (Sn) Plating, 22-24 AWG | |||
| ||||||
