L015 Led bulb connector 5.00mm Pitch Beige 2 pole

Similar products：

∧ ∨

Part Number:L015

Mounting Type: Surface Mount

Package available:  Reel and tape

Lead time:  Stock can be send immediately, above 10k pcs are above 7-10 days

Detailed Description:Pin:L010A Pin:Brass/Tin-plated   Solder Tabs: Phosphor Bronze/Tin-plated Wafer: LCP, UL94V-0  L010Y Pin: Phosphor Bronze/Tin-plated Solder Tabs: Phosphor Bronze/Tin-plated  Wafer: LCP, UL94V-0  L010AWV Pin:Brass/Tin-plated  Wafer: LCP, UL94V-0 s: Brass/Tin-plated


View video Send message Inquiry

Product details

-

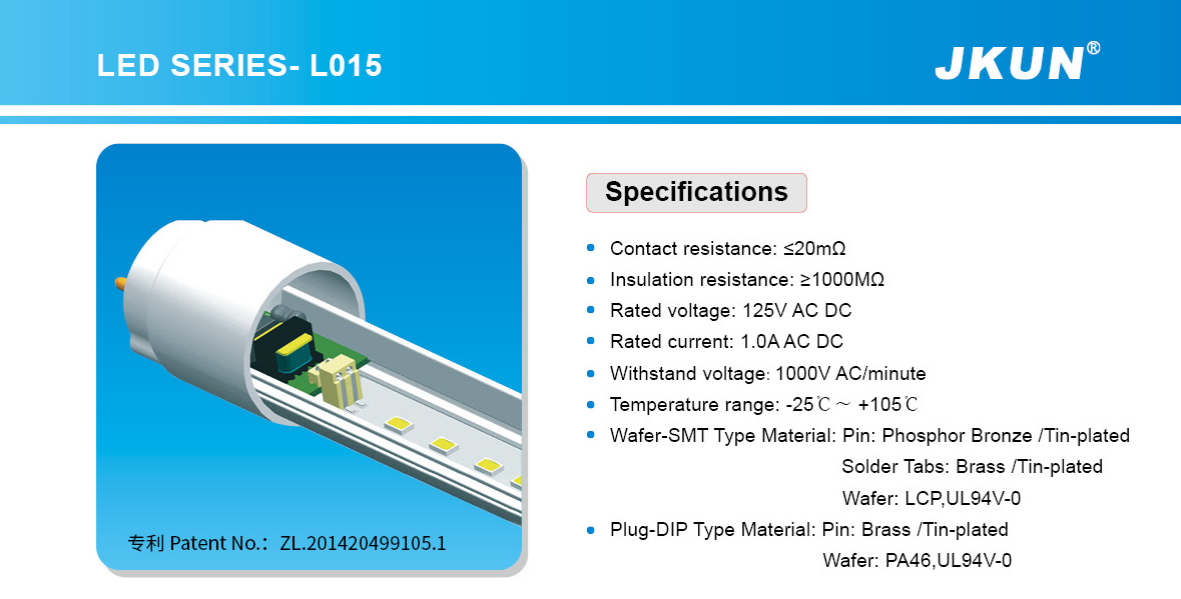

Technical Parameters

Pitch:5.00mm

Rated voltage:125V AC DC

Poles:2p

Rated current:1.0A AC DC

Contact resistance:≤20mΩ

Withstand Voltage:1000V AC/minute

Insulation resistance:≥1000MΩ

Temperature Range:-25℃～ +105℃


Please click "download"to get the detail engineering drawings

And contact us to get the samples free



                              ※TIPS：  L015 +L055 is widely applied in LED BULB lighting connector,board to board connector






Mating products

-

Related products

Application

-

Related Application

Download

-

PDF file

  • L015AWR-02-F2MA2-R
  • L015AWR-03-B1MB2-R-2
.
