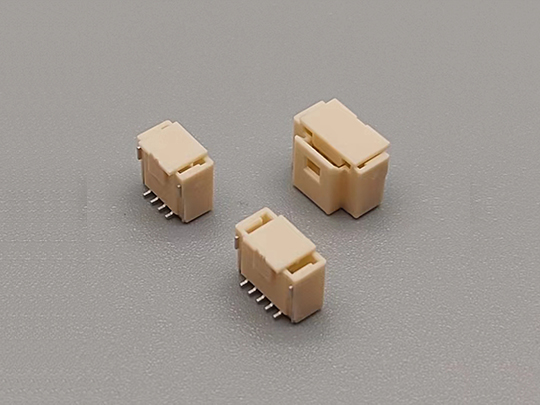

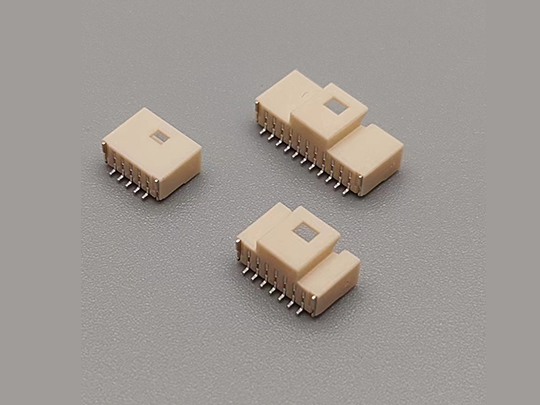

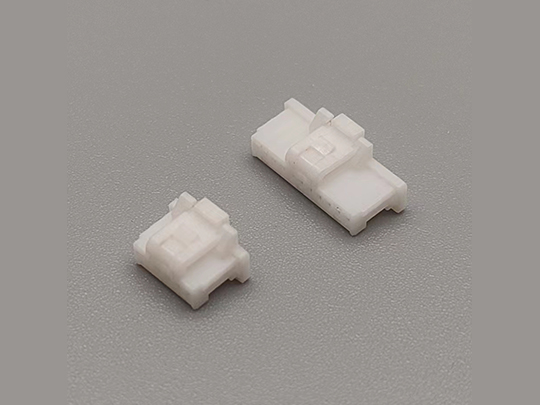

QA1008 Wire to board connector 1.0mm Pitch automotive connector

Similar products：Molex 203564 203564 501193

∧ ∨

Part Series: QA1008

Pitch: 1.0mm

Poles: 2*2 to 2*25P, 02~16P

Temperature Range: -40℃~ +105℃

Rated voltage: 250V AC DC

Rated current: 1A AC DC



View video Send message Inquiry

Product details

-

Technical Parameters

Key attributes

Industry-specific attributes

Application
Automotive
Gender
Female,Male

Other attributes

Place of Origin
Zhejiang, China
Brand Name
JKUN
Model Number
QA1008
Pitch
1.0mm
Contact resistance
≤20mΩ
Insulation resistance
≥100MΩ
Rated voltage
250V AC DC
Rated current
1A AC DC
Withstand Voltage
250V AC/minute
Temperature Range
-40℃~ +105℃
Mounting Type
Surface Mount
Package available
Reel and tape
Application
PCB
