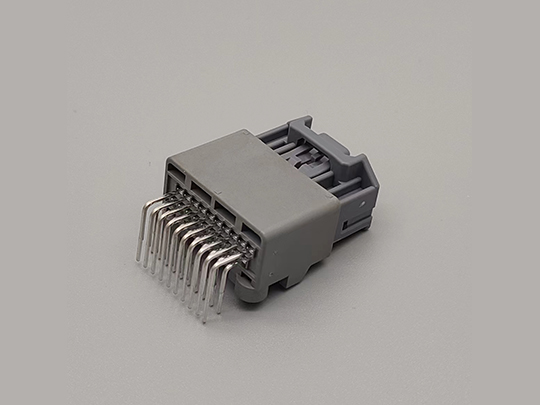

QA2201Y JAE housing terminal Car Wiring Harness Connectors 2.2mm Pitch Connector double row 20pin

Similar products：

∧ ∨

Part Series: QA2201

Pitch: 2.2mm

Poles: 206/208/210/212/214/216/218/220

Temperature Range: -40℃~ +125℃

Rated voltage: 250V AC DC

Rated current: 3.0A AC DC


View video Send message Inquiry

Product details

-

Technical Parameters

Key attributes


  • Connectors designed to cope with incorrect assembly of automotive wiring harnesses and harsh high vibration environments;

  • The secondary lock enhances the anti detachment structure of the terminal fixation, making the electrical performance connection of the connector more reliable;

  • Adopting UL94 V-0 flame retardant grade halogen-free materials to ensure vehicle safety.

Industry-specific attributes

Type
DIP
Application
Automotive
Gender
Female

Other attributes

Place of Origin
Zhejiang, China
Brand Name
JKUN
Model Number
QA2201AW
Product name
QA2201Y
Material
UL94 V-0
Pin
202/203/204/205/206/207/208/210/212 /214/216/218/220P
Pitch
2.2mm
Compliance
USCAR2.0,QC/T1067-2017
Rated Current
3A
Rated Voltage
250V AC/50V DC
Insulation Resistance
100M Ohm
Withstand Voltage
1000V AC/min
Temperature Range
-40℃~ +125℃
