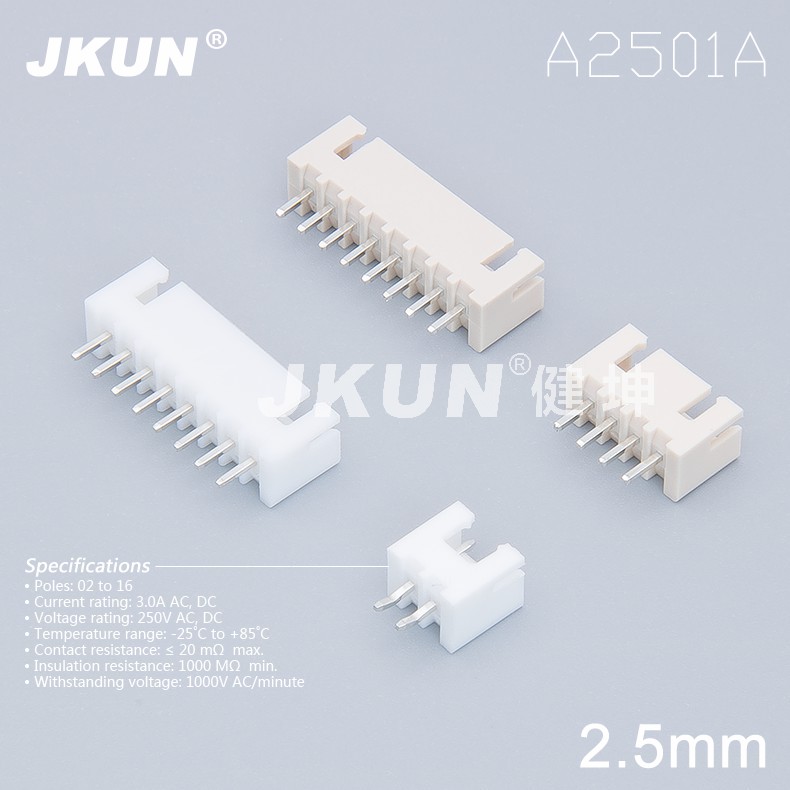

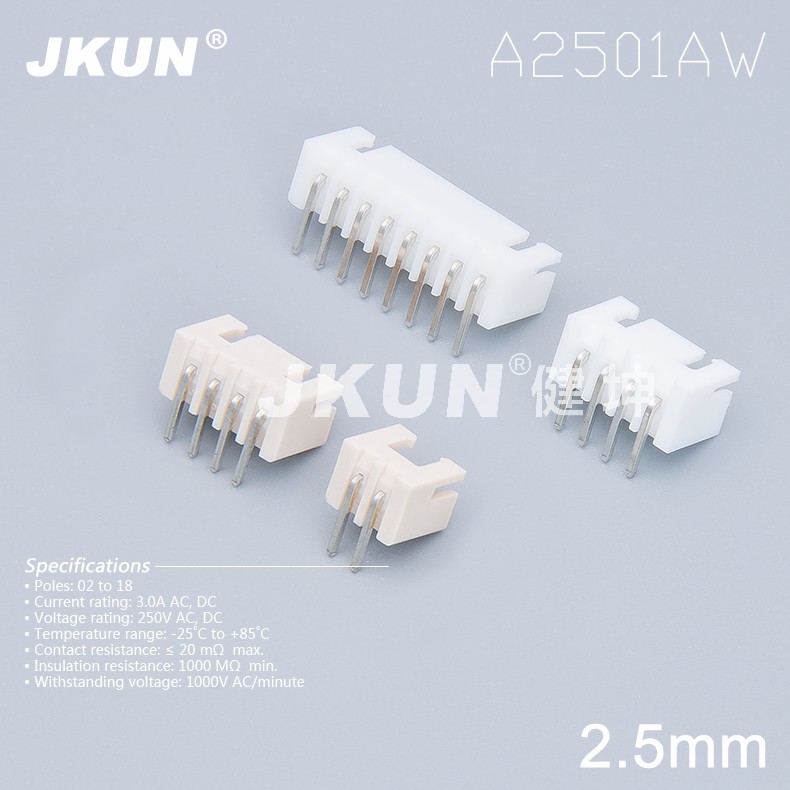

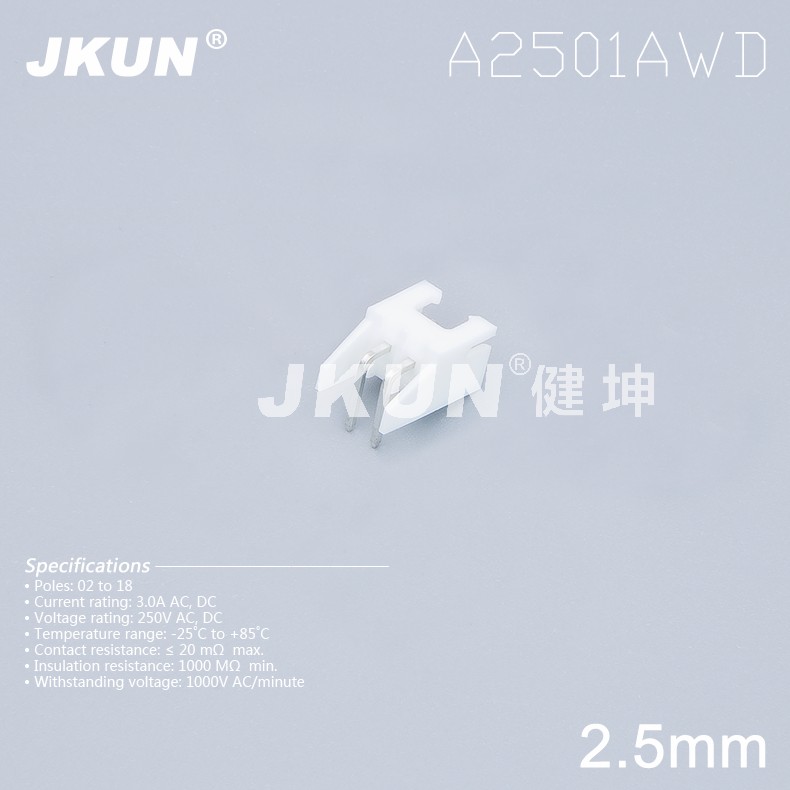

A2501 Wire to board 2.50mm Pitch Pico-Clasp PCB Header, Sigle Row, Vertical, Right-Angle, Surface Mount, 2pin to 16Pin XH connector

Similar products:JST XH

Part Series: A2501

Pitch: 2.5mm

Poles: 02 to 16p

Temperature Range: -25℃~ +105℃

Rated voltage: 250V AC DC

Rated current: 3.0A AC DC





Product details

-

Technical Parameters

 A2501 Wire to board connector 2.50mm Pitch Beige 2 to 16 poles,have in stock, a great substitute for molex, wago, jst

Pitch:2.50mm

Rated voltage:250V AC DC

Poles:2 to 16P

Rated current:3.0A AC DC

Contact resistance:≤20mΩ

Withstand Voltage:1000V AC/minute

Insulation resistance:≥1000MΩ

Temperature Range:-25℃~ +105℃





Please download the drawings or contact us to get it


Our Advantage and Service:


1.Specializes in manufacturing connector more than 10 years, more than 500 staffs, includes more than 60 R & D personnel.


2.Have the  largest number of automatic production equipment in China.



3.Have long and Rich cooperation experience with Midea, panasonic, huawei, and so on.


4.Quick deliver, good qulity and competitive price.


5.Almost get all of the certification for connector ,such as UL, MSDS, CE,

ISO9001,ISO14001,ROHS,REACH, CQC, ect.


6. replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect.



7.Custom-made orders welcome here


10.Samples free,and have sample kits .


FAQ

Q: Are you a factory or trading company? How could we trust you?

We are a factory from 2013, have over 500 employees, 5 sales office in china. Our factory area over 20000 sqm. We are a good supplier verified by UL company, pls check our company profile to learn more about us. At the same time, welcome to visit us at any time.


Q: How does your factory do regarding quality control?

Some of our connectors have UL certification, we have received ISO9001 international quality certification in 2001, and get the certification of TS16949 in 2016.

Q: When can I get the price?

Usually we quote within 12 hours after we get your inquiry. If you are urgent, pls call directly or add wechat or whatsapp to talk directly.


Q: How could I get the sample?

You can send us a email or talking online about the description of your sample. Then we will send out within 3 days.


Mating products

Application

Download

-

PDF file

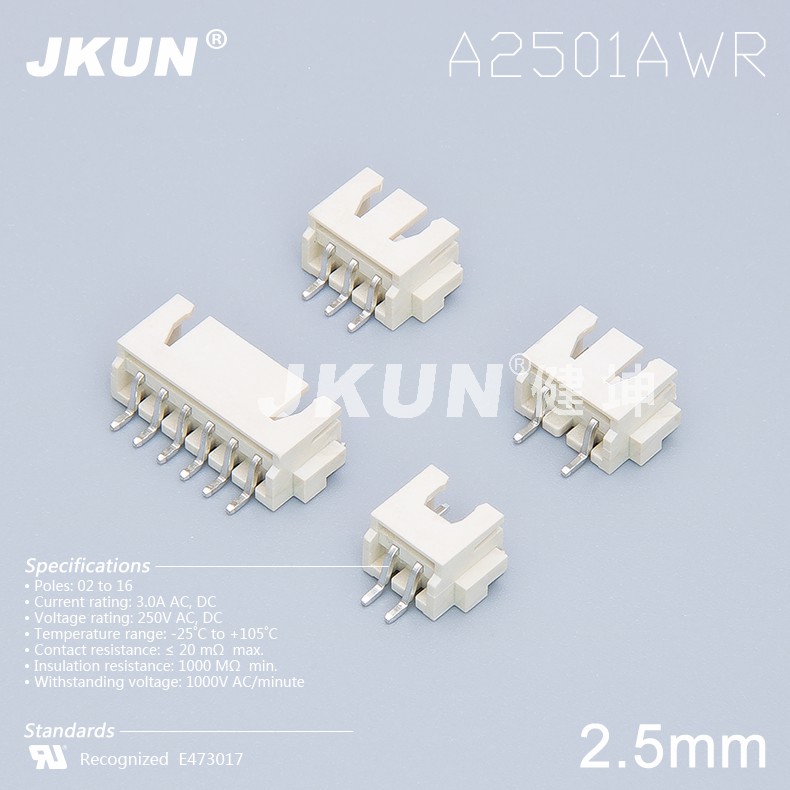

  • A2501AWR-xx-F1CA-R

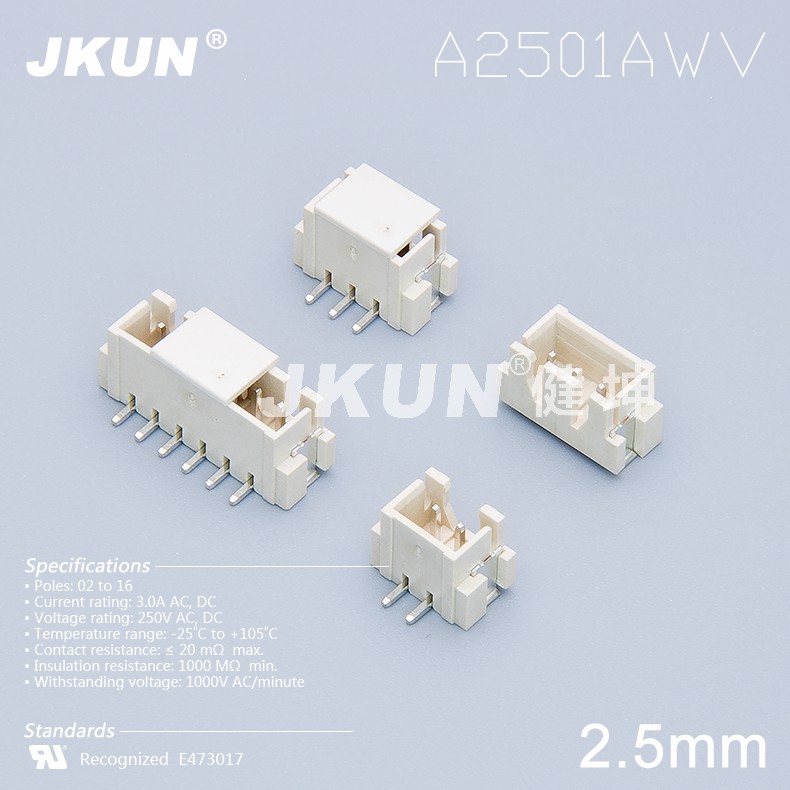

  • A2501AWV-xx-F1CA-R-X
  • A2501T

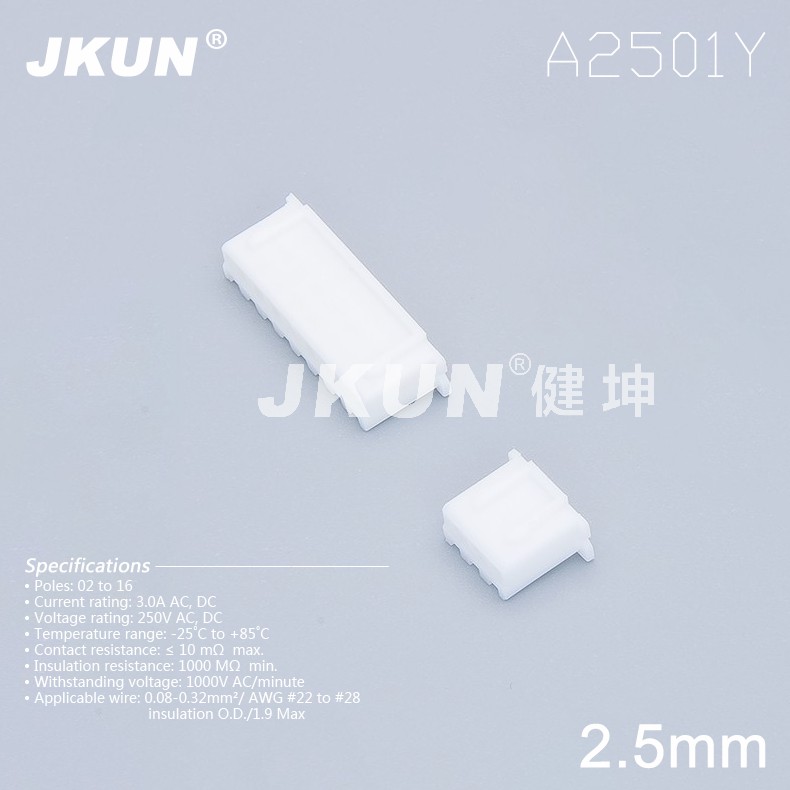

  • A2501Y(XH)
.
